Pin-Loaded Machines: Overview and Operation
Pin-loaded (or selectorised) machines use a stack of weight plates linked by a cable and pulley system. You select the resistance by inserting a magnetic pin into the desired increment on the stack. They isolate target muscle groups, provide a fixed path of motion, and offer a safe environment for both beginners and experienced lifters.
Key Benefits
Safety
The integrated weight stack and fixed trajectory reduce the risk of dropping weights or losing balance.
Efficiency
Changing weight takes seconds—simply move the pin. This makes them ideal for drop sets or quick transitions.
Targeted Isolation
By constraining movement to a precise arc or plane, pin-loaded equipment minimises momentum and forces the target muscle to do the work.
Accessibility
Visual diagrams on the machine frame clearly demonstrate proper setup and primary muscle engagement.
Standard 4-Step Setup Procedure
1
Adjust the Seat
Position the seat height so the handles or pads line up correctly with your joints (e.g., chest press handles at mid-chest line; leg extension pivot aligned with the knee).
2
Select the Weight
Insert the pin fully into the weight stack. Ensure it is locked completely into the chosen plate to prevent slippage.
3
Set the Movement Range
Use lever or pop-pin adjustments on the arms or pads to set a comfortable starting stretch without straining joints.
4
Establish Stance
Keep your feet flat on the floor or footrests, press your back firmly against the backrest, and engage your core.
| Category | Common Machines | Primary Target Muscles | Key Setup Tip |
|---|---|---|---|
| Upper Body Push | Chest Press, Shoulder Press, Triceps Extension | Pectorals, Deltoids, Triceps | Align handles with mid-chest or shoulder height before starting. |
| Upper Body Pull | Lat Pulldown, Seated Cable Row, Rear Delt Fly | Latissimus Dorsi, Rhomboids, Biceps | Keep your chest elevated and avoid swinging your torso to pull the weight. |
| Lower Body | Leg Extension, Seated Leg Curl, Leg Press | Quadriceps, Hamstrings, Glutes | Align the machine's primary pivot point directly with your knee joint. |
| Core & Specialized | Abdominal Crunch, Torso Rotation | Rectus Abdominis, Obliques | Secure your legs/hips firmly to avoid using hip flexors instead of core. |
General execution & form guidelines
-
Control the tempo
Lift the weight smoothly over 1–2 seconds (concentric phase), pause briefly at full contraction, and lower it under control over 2–3 seconds (eccentric phase).
-
Avoid clanging
Do not let the weight stack slam down at the bottom of the rep; maintain constant tension on the cable.
-
Breathe rhythmically
Exhale during the exertion phase (pushing or pulling) and inhale as you return to the starting position.
-
Maintain neutral spine
Keep your head, shoulders, and lower back supported against the padding throughout the movement.
Request a Custom Quote for Your Facility
Contact our friendly staff for support.
Pin-Loaded Machine FAQs
Pin-loaded machines use a weight stack with a selector pin to set resistance, providing a guided movement path that isolates specific muscle groups. Unlike free weights, they remove the need for stabiliser muscles to balance the load, making them ideal for beginners, rehabilitation, and high-volume training where fatigue management is critical. Commercial gyms typically use pin-loaded machines to allow members to train safely without a spotter.

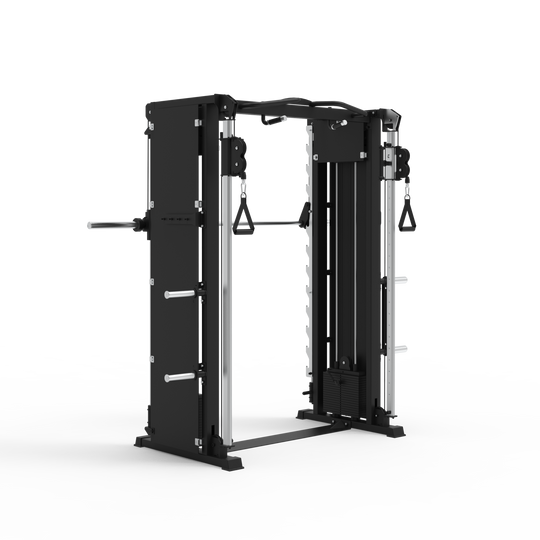

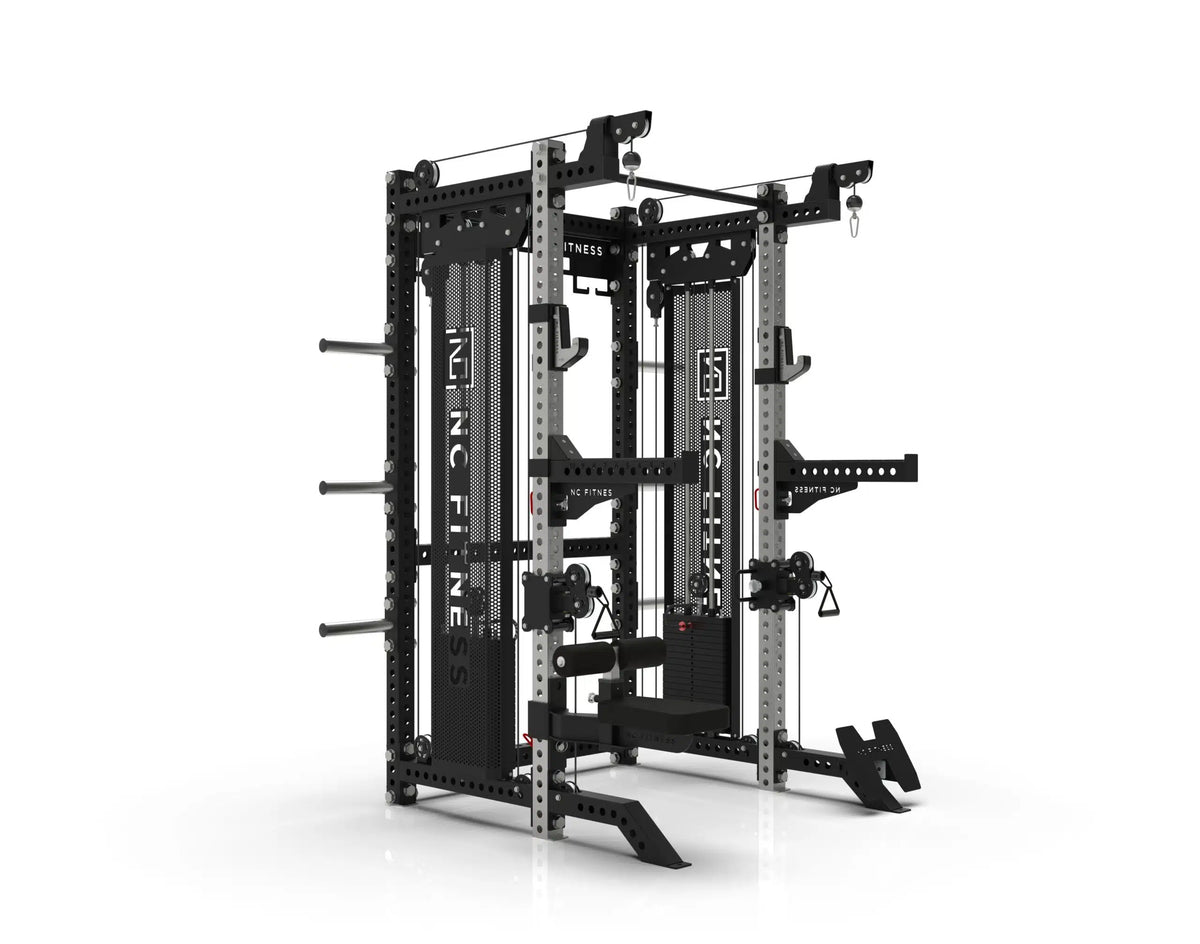

A Smith machine features a barbell fixed to vertical guide rails with integrated safety catches, providing a controlled movement path ideal for squats, presses, and lunges — particularly useful for solo training. A power rack (or squat rack) uses a free barbell within a four-post cage, allowing full natural bar path and greater exercise variety. Power racks are preferred for strength athletes, while Smith machines suit commercial environments where safety and ease of use are priorities.
A standalone pin-loaded machine such as a lat pulldown or leg press typically requires 2m² to 4m² of floor space including safe operating clearance. A Smith machine or power rack requires a minimum of 2m x 2.5m, with additional space for loading plates and user movement. For a full commercial pin-loaded circuit, allow at least 5m² per station including access corridors.
For commercial facilities, a minimum of 80kg per stack is recommended to accommodate the full range of users. High-performance commercial pin-loaded machines typically offer 100kg–150kg stacks. For personal training studios and semi-commercial environments, 60kg–80kg is generally sufficient. Heavier stacks also improve machine stability during high-load exercises.
Lubricate weight stack guide rods monthly using a silicone-based lubricant and inspect the selector pin and weight plates for wear. Check cables and pulleys every 3–6 months and replace at the first sign of fraying. Wipe down upholstery and frame surfaces after each session. Tighten all bolts quarterly, paying particular attention to Smith machine rail brackets and power rack uprights subject to dynamic loading.
