NC Fitness Cable Machines Buyer’s Guide

Cable machines are the ultimate workhorses of modern strength training. Unlike free weights—where resistance depends entirely on gravity and leverage angles—cable machines deliver constant, smooth tension throughout the entire range of motion.

Whether you are equipping an elite commercial facility, a functional group studio, or building a high-end home gym, an NC Fitness cable setup adds unmatched versatility to your training floor.

The Cable Advantage: By allowing multi-planar movement patterns (horizontal, vertical, rotational, and diagonal), cable machines let lifters isolate target muscles safely, accommodate joint-friendly lifting paths, and execute high-speed athletic movements under smooth tension.

3 Core Cable Configurations

Select the architecture that best aligns with your space budget, floor footprint, and programming goals:

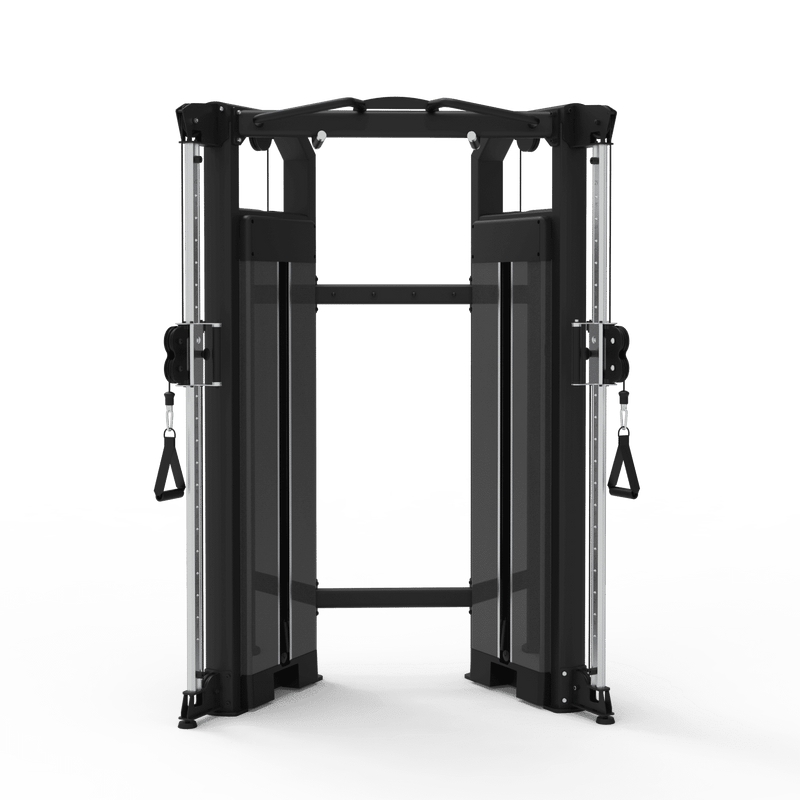

6 Series Functional Trainer Machine front view

Dual-Stack Functional Trainers

The king of cable versatility. Featuring two weight stacks spaced wide apart with fully adjustable dual pulleys, these units accommodate everything from standing chest flies and cable crossovers to rotational woodchoppers and dynamic sports-performance drills. Ideal For: Commercial gyms, rehab clinics, personal training studios, and dedicated home gyms. Key Benefit: Two lifters can train simultaneously on independent weight stacks.

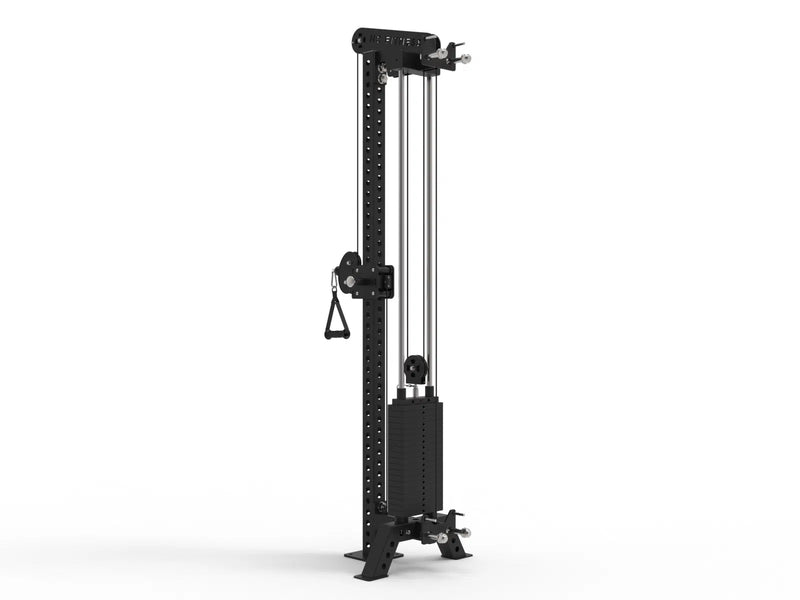

Single-Stack Cable Columns

A space-saving vertical station featuring a single weight stack and a high-to-low adjustable trolley system. Ideal For: Compact studios, home garage corner setups, or filling narrow floor gaps between power racks. Key Benefit: Delivers full cable functionality while taking up less than 0.5m² of floor area.

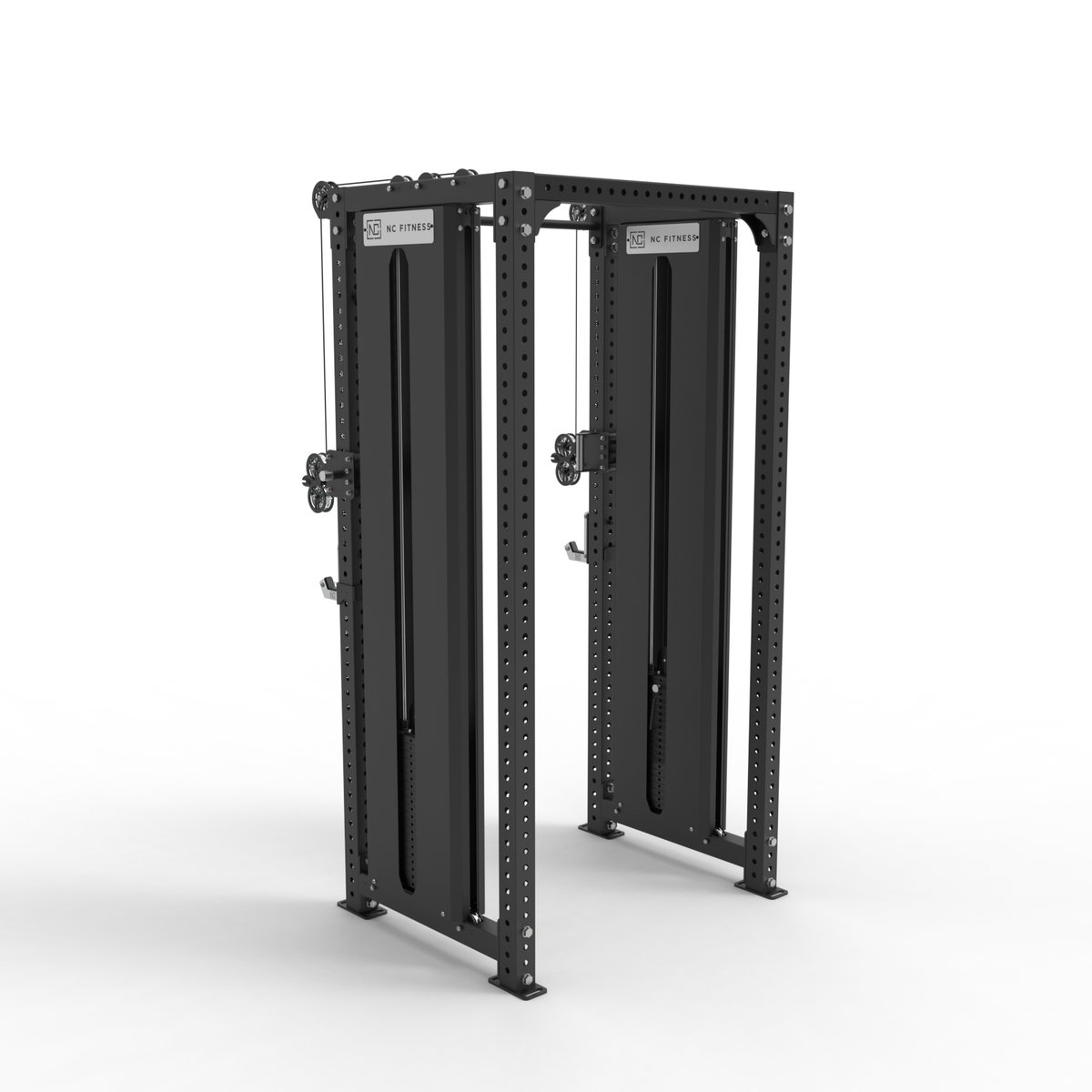

Integrated Rack-Mounted Cable Systems

Designed to bolt directly onto your 75mm x 75mm NC Fitness Power Cage or Squat Rig uprights, offering plate-loaded or weight-stack lat pulldown and low row options. Ideal For: Home gym lifters who want high-lat rows and low cable pulls without sacrificing open floor space. Key Benefit: Zero added floor footprint beyond your existing squat rack depth.
1.

CABLE COLUMNS

Single vertical upright | Ultra-compact (~0.5m²) | Great for isolations

2.

DUAL FUNCTIONAL TRAINERS

Two independent weight stacks | Broad wide-chest width | Maximum variety

3.

ALL-IN-ONE RACK CABLE ATTACHMENTS

Integrated into power cage | Zero extra floor footprint | Budget smart

Cable System Comparison

Cable System Type Primary Training Use Footprint Required Weight Stack Type Max User Capacity
Dual Functional Trainer Chest flies, multi-angle isolation, rotational athletic work 2.0m (W) x 1.2m (D) Dual Pin-Select (2 x 100kg) 2 Athletes
Single Cable Column Tricep extensions, bicep curls, face pulls, lateral raises 0.6m (W) x 0.8m (D) Single Pin-Select (100kg) 1 Athlete
Rack-Integrated Pulley Lat pulldowns, seated cable rows, low pulley curls Fits inside/behind rack Plate-Loaded or Stack 1 Athlete

Must-Have Cable Attachments

To get the most out of your cable machine, pair your unit with essential high-use attachments:

What to Look For Before Buying

Pulley Ratio (2:1 vs 1:1)

2:1 Cable Ratio: Moving the weight plate 1 metre pulls 2 metres of cable. This halves the felt resistance (a 100 kg stack feels like 50 kg), creating ultra-smooth cable travel with long reach—ideal for fast, explosive movements and isolation exercises.

1:1 Cable Ratio: Provides true 1 to 1 weight-to-resistance translation. Perfect for heavy lat pulldowns and seated rows where raw weight loading is the priority.

Pulleys & Aircraft Cable

High-grade aluminium aircraft-grade cables encased in smooth nylon sleeves prevent binding, drag, or snapping under heavy daily usage.

Adjustable Trolley Swivels

Look for 180-degree rotating swivels on the height adjustment sleeves to ensure fluid movement regardless of the angle you are pulling from.

Cable Machines

Cable Machine Accessories

Cable Machine Accessories

Upgrade Your Strength Zone Today

From space-saving cable columns to full commercial dual functional trainers, NC Fitness supplies heavy-duty cable machinery engineered for fluid action and long-term durability.

Contact Us

Cable Machine FAQs

A functional trainer features two independent weight stacks with fully adjustable pulleys that move from floor to ceiling height, making it ideal for unilateral, rotational, and sport-specific movements. A cable crossover is a fixed dual-pulley unit typically used for chest flies and crossover exercises at a set height. Functional trainers offer significantly more exercise variety and are the preferred choice for commercial and serious home gym setups.
Most dual-stack functional trainers and cable columns require a minimum ceiling clearance of 2.3m–2.5m to allow full overhead pulley travel. For rack-mounted lat pulldown attachments, clearance requirements depend on your existing power cage height. Always check the product specifications and add at least 200mm of clearance above the unit's maximum height for safe operation.
For commercial facilities, a minimum of 80kg per stack is recommended to accommodate a wide range of users. High-performance commercial units typically offer 100kg–150kg stacks. For personal training studios and semi-commercial use, 60kg–80kg per stack is generally sufficient. Heavier stacks also improve machine stability during high-load exercises.

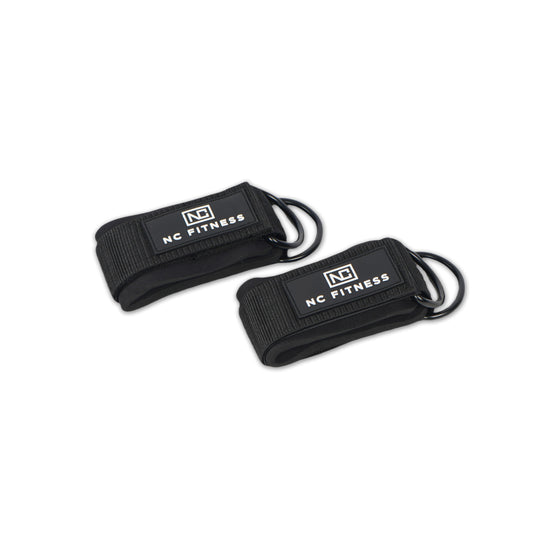

Yes. With the pulley set to the lowest position and an ankle strap attachment, cable machines are highly effective for glute kickbacks, hip abduction, adduction, and cable squats. Functional trainers with floor-level pulley adjustment are particularly well-suited to lower body and rehabilitation exercises.
Inspect and lubricate the weight stack guide rods monthly using a silicone-based lubricant. Check cables and pulleys for fraying or wear every 3–6 months and replace cables at the first sign of damage. Wipe down upholstery and frame surfaces after each session. Tighten all bolts and hardware quarterly, particularly on rack-mounted attachments subject to dynamic loading.
